- Most full-size vending machine dimensions land at 72 inches tall, 29 to 47 inches wide and 30 to 39 inches deep. A few tall stack vendors reach 79 to 80 inches.
- Weight runs from about 536 pounds for a narrow stack vendor to roughly 900 pounds for a high-capacity drink machine, before any product is loaded.
- Width is the number that varies most: narrow stack vendors are 29 to 31 inches, standard stack vendors 37 to 39.5, glass-front drink and combo machines 39 to 47.
- Depth decides the doorway: a 35-inch-deep machine needs more than 35 inches of clear opening, measured from door stop to door stop.
- Check the outlet and the floor before delivery. A snack machine like the AMS 39 draws about 7 amps at 120 volts, and most drink machines want their own circuit.
Vending machine dimensions are the first thing to check after you get a yes from a location, and the most common reason a delivery goes wrong. Nearly every full-size machine is 72 inches tall. Width and depth are where they differ, and those few inches decide whether the machine makes it through the door, past the corner and into the spot the manager pointed at.
Part of our complete guide: how to find vending machine locations.
This page puts the real numbers for common soda, snack and combo models in one place, then walks through the three measurements that matter on site: the doorway, the path and the outlet. Specs come from manufacturer pages and dealer listings, linked next to each table so you can confirm the exact model you're buying.

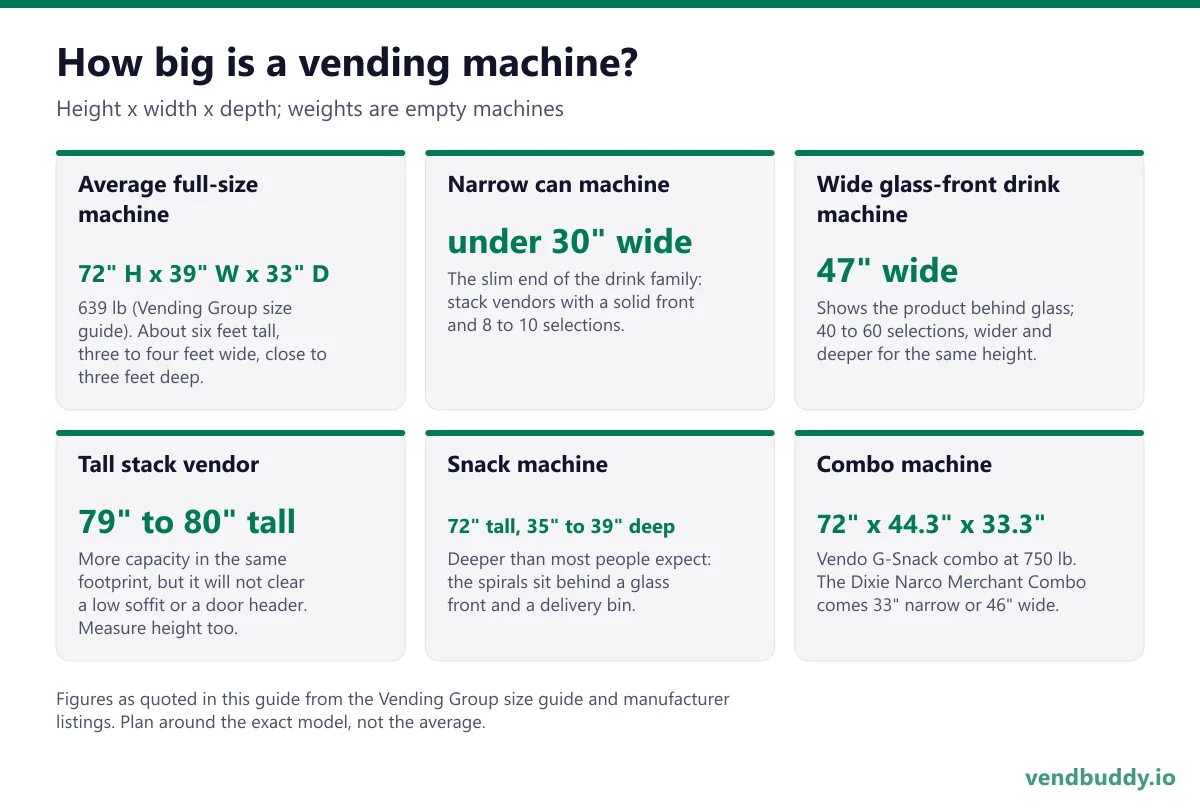

The short answer: typical vending machine size
A full-size machine is about six feet tall, three to four feet wide and close to three feet deep. One national vending service puts the average at 72 inches high, 39 inches wide and 33 inches deep, at 639 pounds (Vending Group size guide).
That average hides a wide spread. A narrow can machine can be under 30 inches wide, while a wide glass-front drink machine is 47. If you're planning a break room, plan around the specific model, not the average.

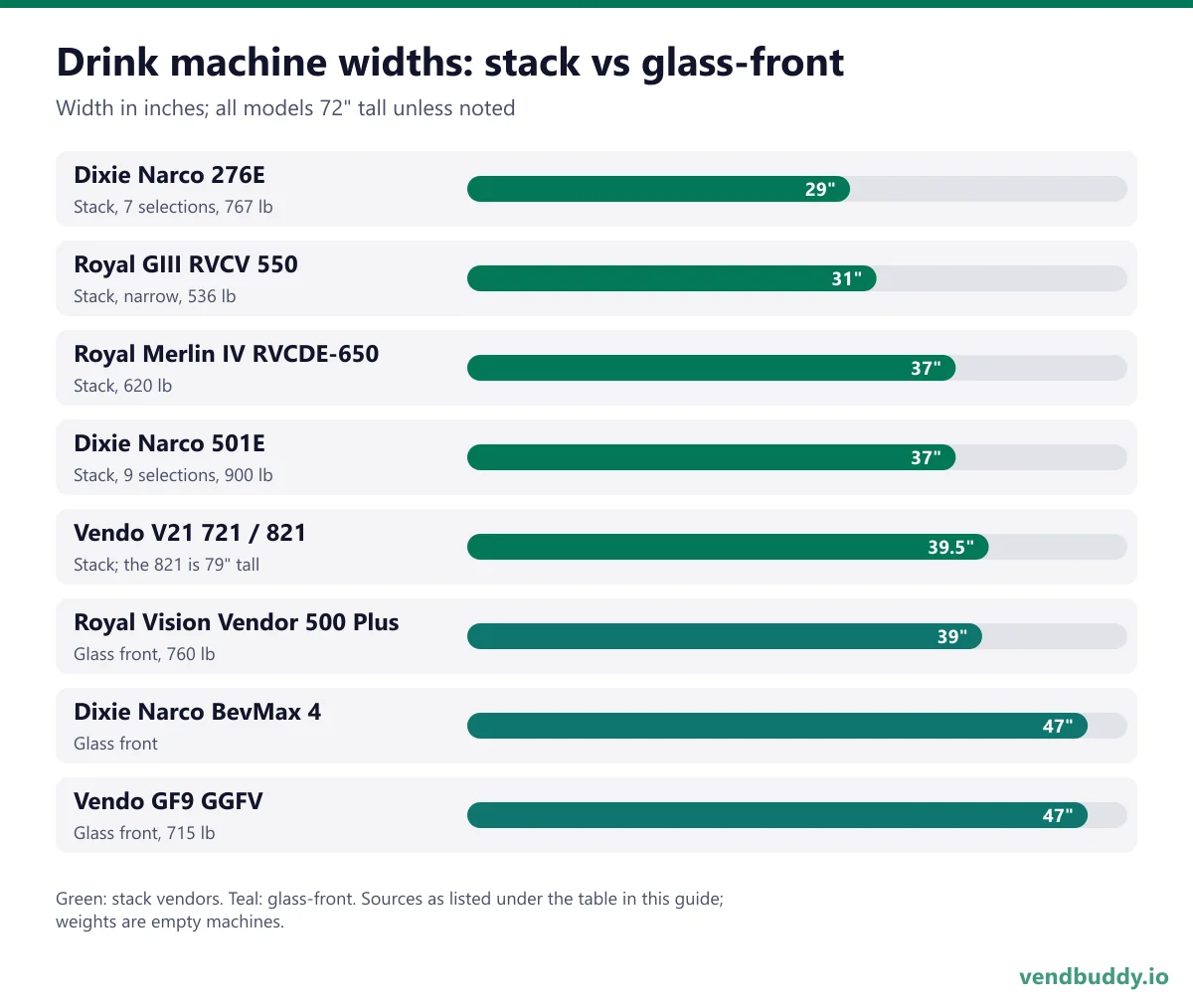

Soda and drink machine dimensions
Drink machines come in two families. Stack vendors drop cans and bottles from columns behind a solid front, usually with 8 to 10 selections. Glass-front machines show the product and use an elevator or delivery bin, usually with 40 to 60 selections. Glass-front machines are wider and deeper for the same height.
| Model | Height | Width | Depth | Weight | Type |
|---|---|---|---|---|---|
| Dixie Narco 276E | 72" | 29" | 35" | 767 lb | Stack, 7 selections |
| Royal GIII RVCV 550 | 72" | 31" | 33.5" | 536 lb | Stack, narrow |
| Royal Merlin IV RVCDE-650 | 72" | 37" | 35.5" | 620 lb | Stack |
| Dixie Narco 501E | 72" | 37" | 35" | 900 lb | Stack, 9 selections |
| Vendo V21 721 | 72" | 39.5" | 35" | 660 lb | Stack |
| Royal GIII RVCV 804 | 79.5" | 37" | 33.5" | 653 lb | Stack, tall |
| Vendo V21 821 | 79" | 39.5" | 35" | 725 lb | Stack, tall |
| Royal Vision Vendor 500 Plus | 72" | 39" | 35.5" | 760 lb | Glass front |
| Dixie Narco BevMax (narrow) | 72" | 39" | 32" | n/a | Glass front |
| Dixie Narco BevMax 4 | 72" | 47" | 32" | n/a | Glass front |
| Vendo GF9 GGFV | 72" | 47" | 34" | 715 lb | Glass front |
Sources: Royal, Vendo and Dixie Narco rows from the Vending Group size guide; 276E from Vending World; 501E from Southern Equipment Sales. Weights are empty machines.
Two things stand out. First, the tall stack vendors (79 to 80 inches) buy you more capacity in the same footprint, but they won't fit under a low soffit or a drop ceiling near a door header, so measure height too. Second, the 501E is heavy for its size. Nine hundred pounds on a tile floor in an old building is a question for the property manager, not something to discover on delivery day.
Picture the machines paying you while you sleep
That’s the real promise of vending — income that doesn’t cost you your time, and a life on your own terms. VendBuddy turns this guide into a step-by-step plan so you actually build it instead of just reading about it. Start free today.
Start building free →Snack machine dimensions
Snack machines are deeper than most people expect because the spirals sit behind a glass front and a delivery bin. The common models cluster around 72 inches tall and 35 to 39 inches deep.
| Model | Height | Width | Depth | Weight |
|---|---|---|---|---|
| AMS Classic Snack (35 wide) | 72" | 35" | 35" | n/a |
| AMS 39 | 72" | 39" | 35" | about 700 to 820 lb |
| Crane National 187 Merchant Media | 72" | 44" | 35" | about 696 lb |
| Dixie Narco Merchant Media (narrow) | 72" | 33" | 39" | n/a |
| Dixie Narco Merchant Media (wide) | 72" | 44" | 38" | n/a |
Sources: AMS; AMS 39 weights vary by dealer listing (Southern Equipment Sales lists 700 lb, A&M Equipment about 820 lb); Crane National 187 from Vending World; Dixie Narco Merchant Media from the Vending Group guide.
When two dealers list different weights for the same model, the difference usually comes from options like a refrigeration deck or a cashless kit. Ask the seller for the shipping weight of the exact unit, because that's what your dolly and your floor will carry.
Combo machine dimensions
Combo machines put snacks and cold drinks in one cabinet, which is why they're the default for smaller break rooms. They're full height and usually as wide as a glass-front drink machine. The Vendo G-Snack combo is 72 by 44.3 by 33.3 inches at 750 pounds, and the Dixie Narco Merchant Combo comes in a 33-inch narrow and a 46-inch wide version (Vending Group size guide). If a location only has room for one machine, a combo is often the answer. Our combo vending machine price guide covers what they cost.

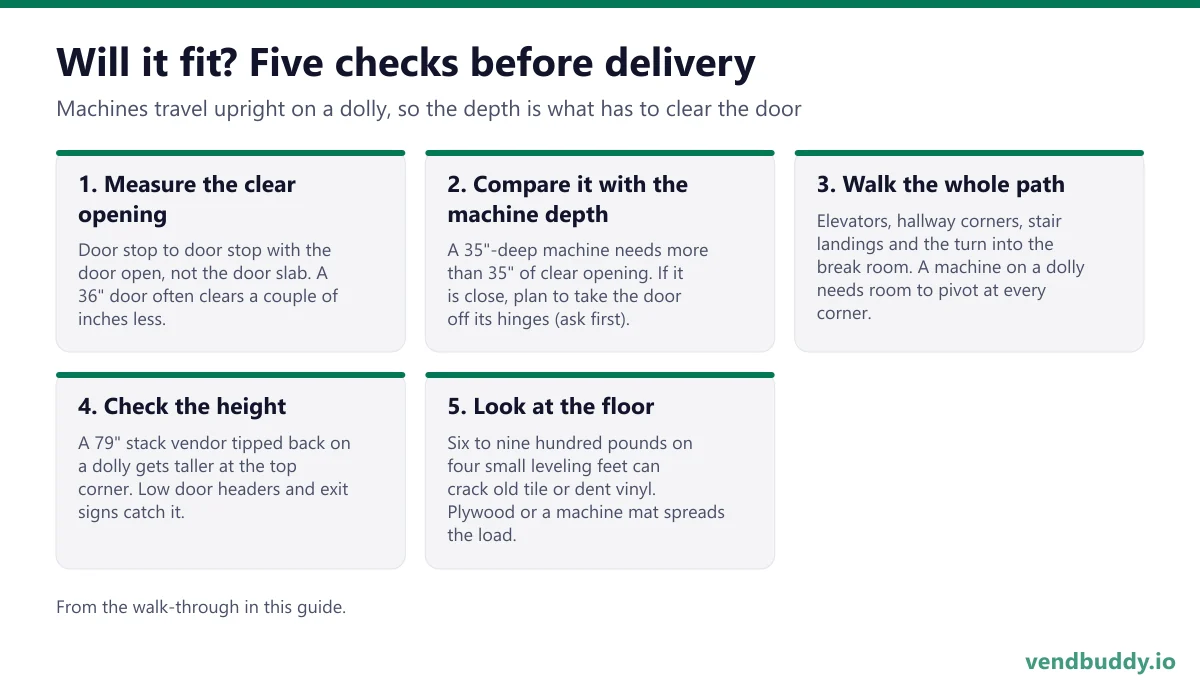

Will it fit? Check the doorway, the path and the turn
Machines travel upright on an appliance dolly, so the measurement that has to clear the door is usually the depth, not the width. Here's the walk-through to do before you order:
- Measure the clear opening. Measure from door stop to door stop with the door open, not the door slab. A 36-inch door often has a clear opening of a couple of inches less once the stops and the open door are in the way.
- Compare it with the machine's depth. A 35-inch-deep machine needs more than 35 inches of clear opening. If it's close, plan on taking the door off its hinges, which most facilities managers will allow if you ask first.
- Walk the whole path. Elevators, hallway corners, stair landings and the turn into the break room all count. A long machine on a dolly needs room to pivot at every corner.
- Check the height. A 79-inch stack vendor tipped back on a dolly gets taller at the top corner. Low door headers and exit signs are what catch it.
- Look at the floor. Six to nine hundred pounds on four small leveling feet can crack old tile or dent vinyl. A piece of plywood or a machine mat under the feet spreads the load.
Outlet and clearance
Every refrigerated machine needs power within reach of its cord, and most operators want a dedicated circuit so a microwave on the same line doesn't trip it. As a reference point, one dealer lists the AMS 39 snack machine at 120 volts and about 7 amps (A&M Equipment). Drink machines run compressors, so check the plate on the back of the exact unit.
Leave a few inches behind the machine so the condenser can breathe. A drink machine shoved flat against a wall runs hotter, uses more power and wears out its compressor sooner. ENERGY STAR publishes a separate specification for refrigerated beverage vending machines, which is worth a look if the location pays the power bill and asks about it.
Picking a size for the location
Size follows traffic. A break room with 30 people rarely needs more than one narrow stack vendor or a combo. A warehouse shift of 150 people can justify a full glass-front drink machine next to a full snack machine. The space a manager offers is usually smaller than they think, so bring a tape measure to the walk-in and write the numbers down while you're there. It makes you look like someone who has done this before, and it stops a bad surprise on delivery day.
If you haven't picked the model yet, start with which vending machine fits your location, then check prices in our vending machine prices guide. And if you're still looking for the building, VendBuddy shows you which businesses near you are worth the walk-in, so the next tape measure you pull out is in a break room that can carry a machine.
Frequently Asked Questions
What are standard vending machine dimensions?
Most full-size vending machines are 72 inches tall, 29 to 47 inches wide and 30 to 39 inches deep. One national vending service lists the average as 72 x 39 x 33 inches. Tall stack vendors reach 79 to 80 inches.
How much does a vending machine weigh?
Empty, most full-size machines weigh between about 536 and 900 pounds. Narrow stack vendors are at the light end; high-capacity drink machines like the Dixie Narco 501E are near 900 pounds. Product adds more on top.
Will a vending machine fit through a standard door?
Usually, because machines go through upright on a dolly and their depth (30 to 39 inches) is what has to clear the opening. Measure the clear opening between the door stops; if it's within an inch or two of the machine's depth, plan on removing the door from its hinges.
What size are soda machine dimensions compared with snack machines?
Narrow soda stack vendors are the slimmest machines at 29 to 31 inches wide. Snack machines are typically 35 to 44 inches wide and 35 to 39 inches deep. Glass-front drink machines are the widest, up to 47 inches.
What outlet does a vending machine need?
A standard 120-volt outlet within reach of the cord, ideally on its own circuit. As one example, a dealer lists the AMS 39 snack machine at about 7 amps. Check the data plate on the exact machine, especially for refrigerated drink units.
